Dieses OV2640 Kameramodul eignet sich perfekt zum Anschluss an IoT Mikrocontrollern wie z. B. SIPEED, ESP-EYE, ESP-32CAM, STM32 (STM32F4 F7). Es besitzt ein 120° Weitwinkelobjektiv für ein besonders großes Sichtfeld und bietet alle Funktionen einer Ein-Chip-UXGA-Kamera und Bildprozessors.
Details
High sensitivity suitable for low illumination applications
Low voltage suitable for embedded applications
Standard SCCB interface, compatible with I2C interface
Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40x30
Support VarioPixel sub-sampling method
Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control includes color saturation, hue, gamma, sharpness ANTI_BLOOM
ISP has the function of noise elimination and dead pixel compensation
Support image zoom
Lens loss compensation
Saturation automatic adjustment
Automatic adjustment of edge enhancement
Automatic adjustment of noise reduction
key parameter
Photosensitive array 1632x1232 Maximum format UXGA
IO voltage 1.7V-3.3V analog voltage 2.5-3.0v (internal LDO powers the core 1.2V)
Power consumption working TBD sleep <20μA
Temperature operation -30℃ to 70℃
Stable working 0℃ to 50℃
Output format (8 bits) YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
Optical size 1/4"
Field of view 120 degrees
Maximum frame rate 15fps SXGA
Sensitivity 1.3V/(Lux-sec)
S/N ratio 40 dB
Dynamic range 50 dB
Browse mode line by line
Electronic exposure 1 line to 1247 lines
Pixel area 2.2μm x 2.2μm
Dark current 15mV/s at 60℃
Lieferumfang

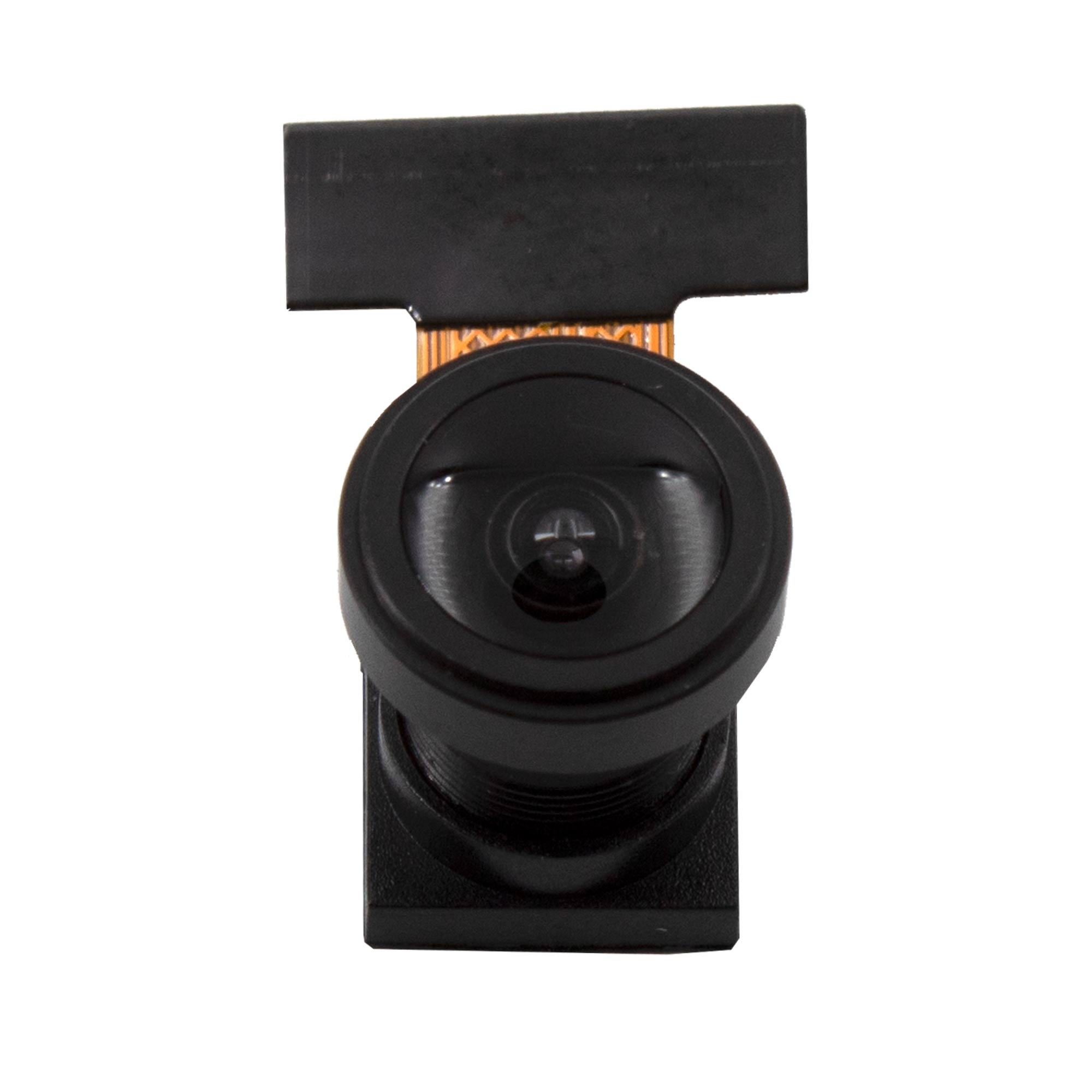

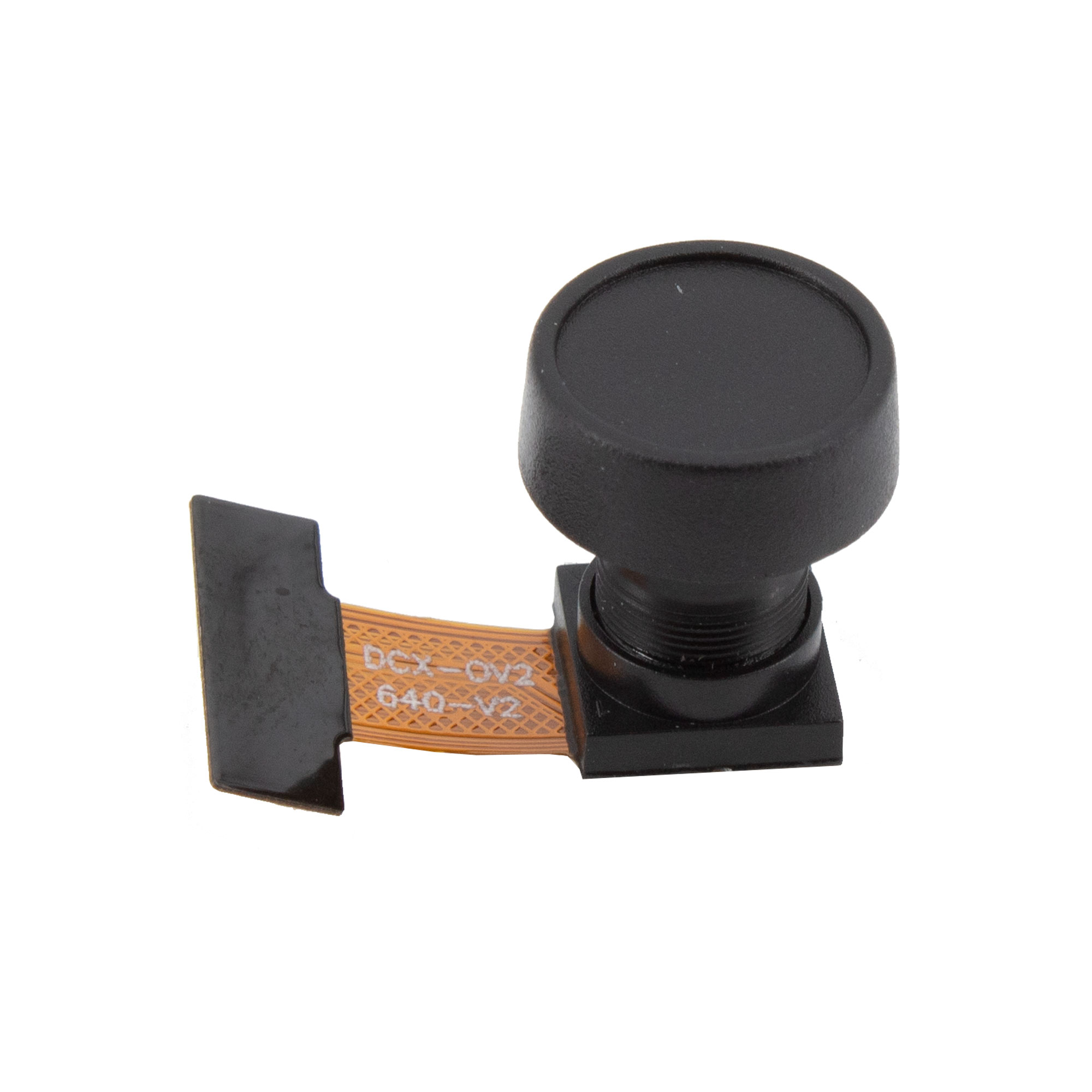

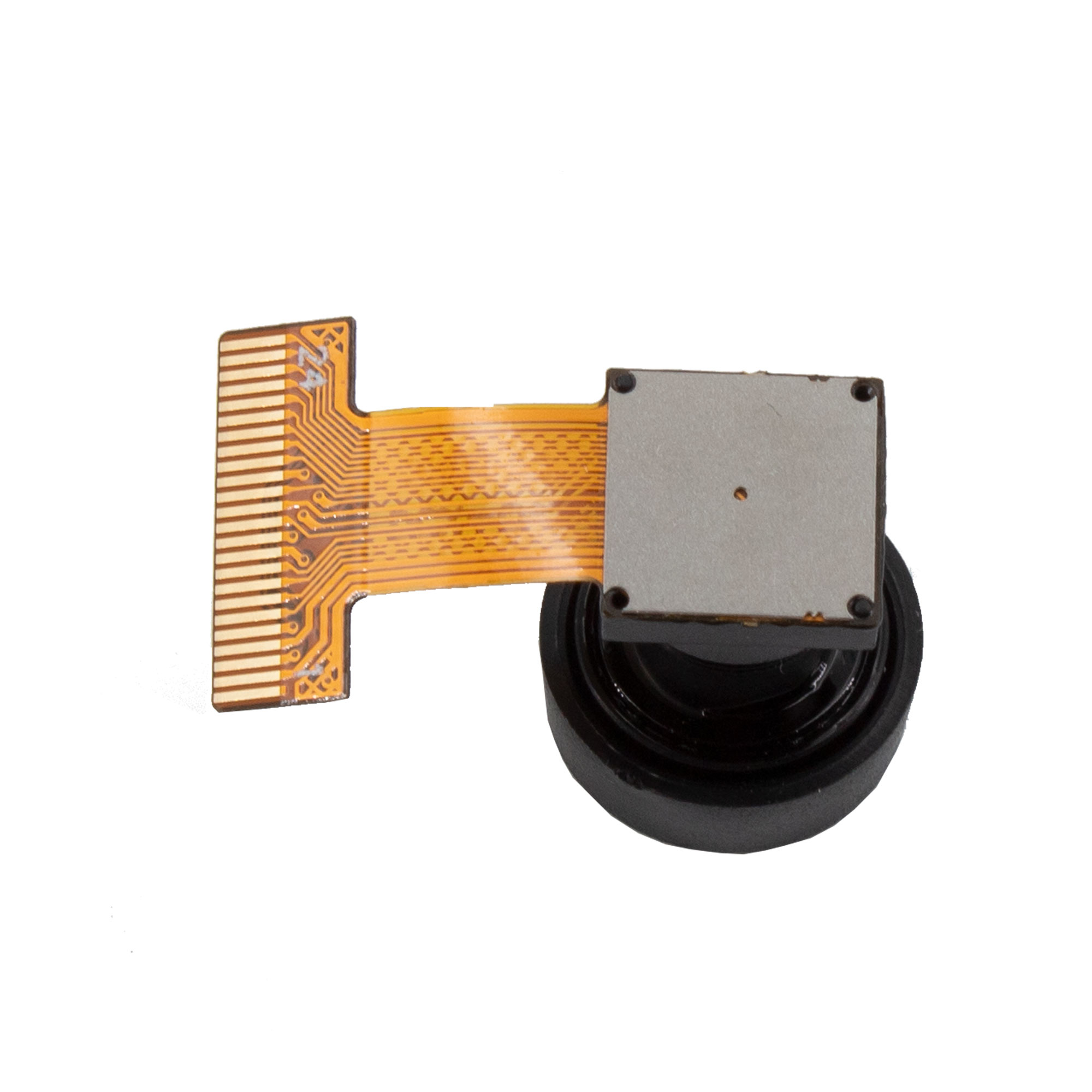

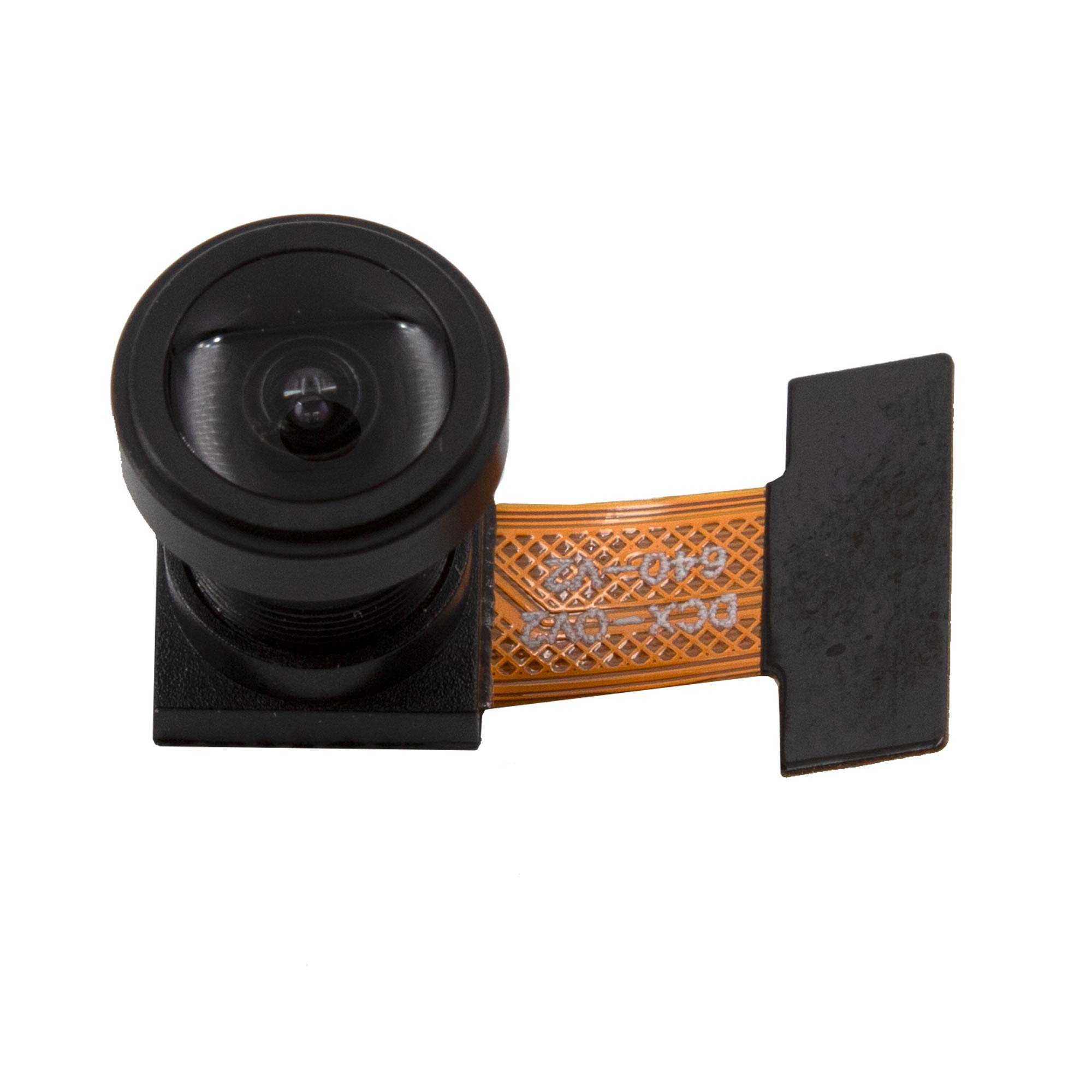

1x Kamera Modul OV2640 120° Weitwinkelobjektiv 2MP
