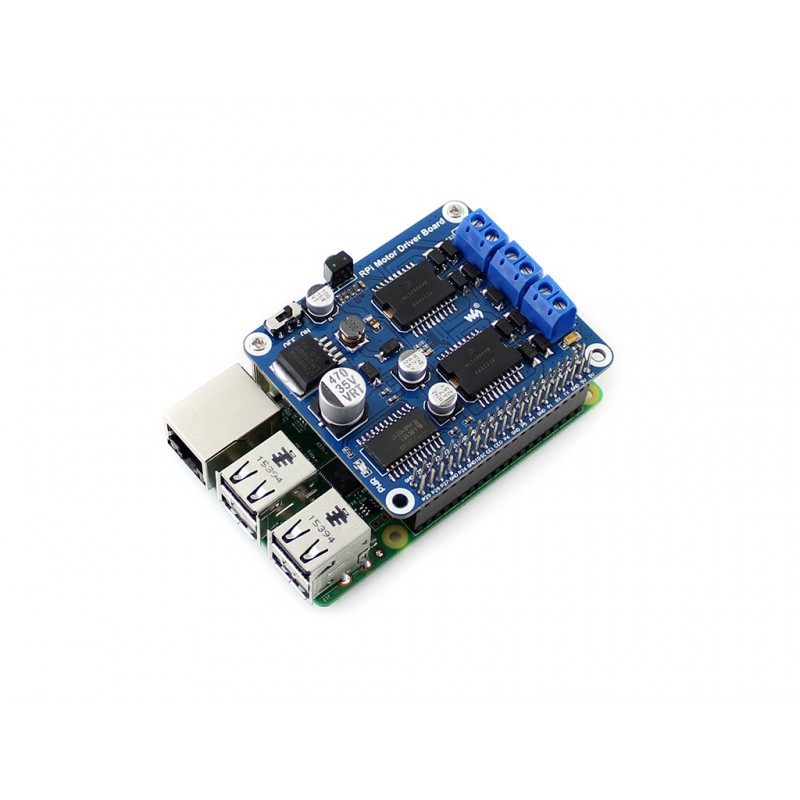

Waveshare RPi Motor Driver Board

Details

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• Freescale H-bridge driver MC33886, controls DC motors to turn in both directions
• Onboard 5V regulator, provides power to Raspberry Pi
• Onboard IR receiver, used for remote control robot
• Multi protection circuit, excellent stability
• 2A self-recovery fuse, keep your Pi safe
• Driver chip features Short-Circuit Shutdown for Large Output Current, Undervoltage Disable Function
• Reversed polarity protection for motor output
• Anti-reverse diode for power supply
• Power input range: 7V~40V
• Single motor output current: up to 5A
• Power supply current for Raspberry Pi: up to 2A

Lieferumfang

• 1x RPi Motor Driver Board
• Lieferung OHNE Raspberry Pi!
