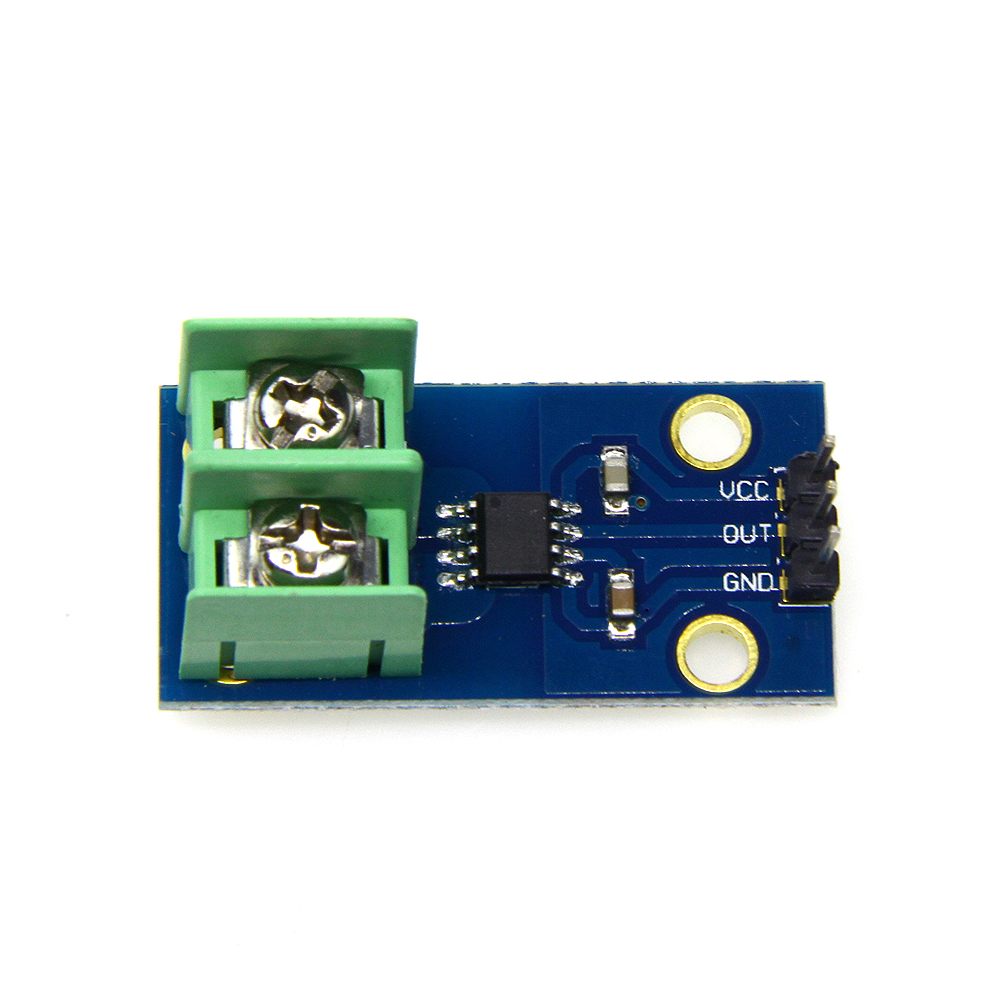

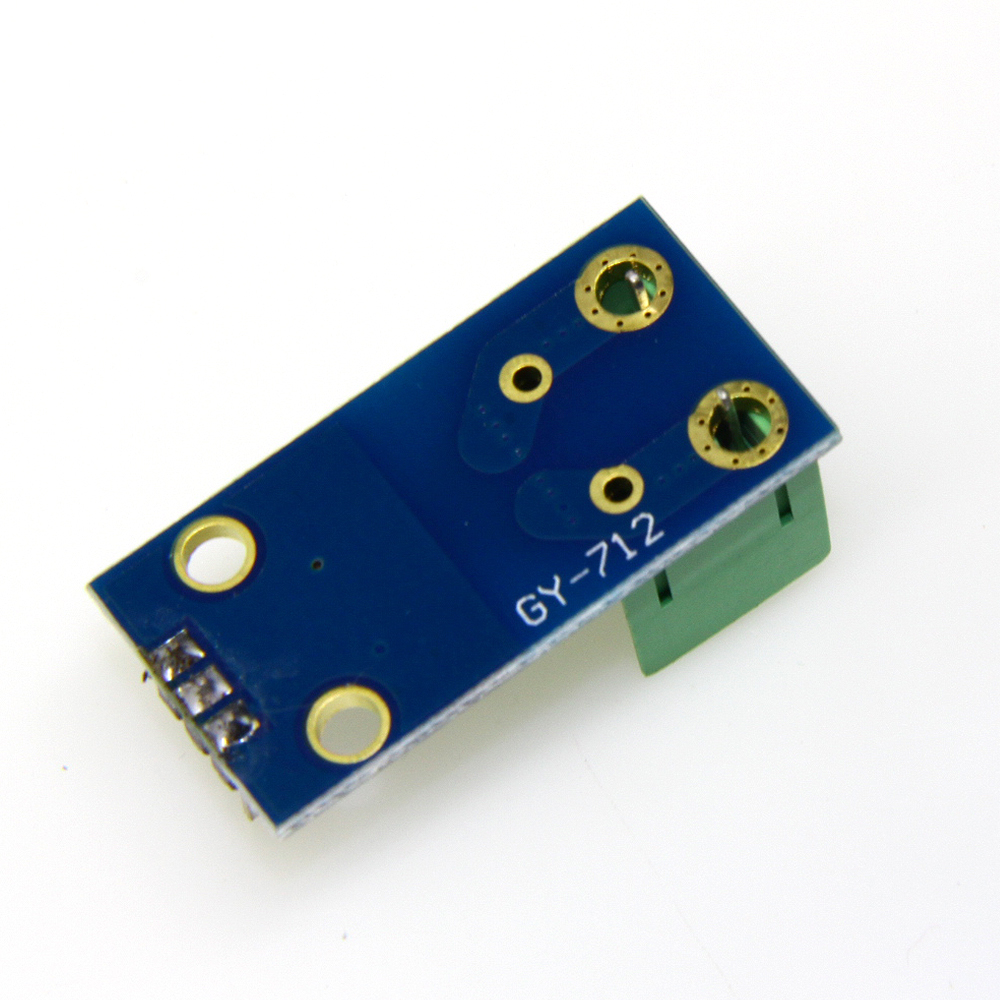

30A Stromsensor ACS712ELCTR-30A

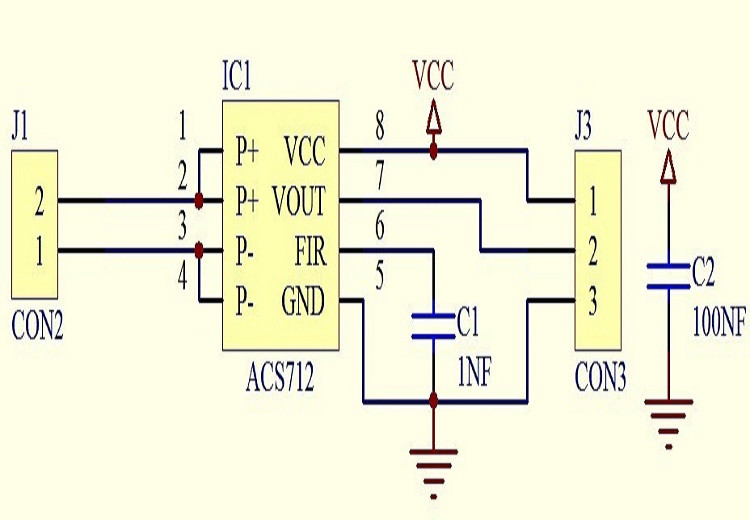

Details

• Chip: ACS712ELCTR-30A
• Power supply: 5v
• Measuring range: 30A
• 66 to 185 mV/A output sensitivity
• On-board power indicator
• When the current is 0, the output is the power midpoint voltage, isolated
• Low-noise analog signal path
• Device bandwidth is set via the new FILTER pin
• 5 μs output rise time in response to step input current
• 80 kHz bandwidth ▪ Total output error 1.5% at TA = 25°C
• Small footprint, low-profile SOIC8 package
• 1.2 mΩ internal conductor resistance
• 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
• 5.0 V, single supply operation
• Output voltage proportional to AC or DC currents ▪ Factory-trimmed for accuracy
• Extremely stable output offset voltage
• Nearly zero magnetic hysteresis
• Ratiometric output from supply voltage

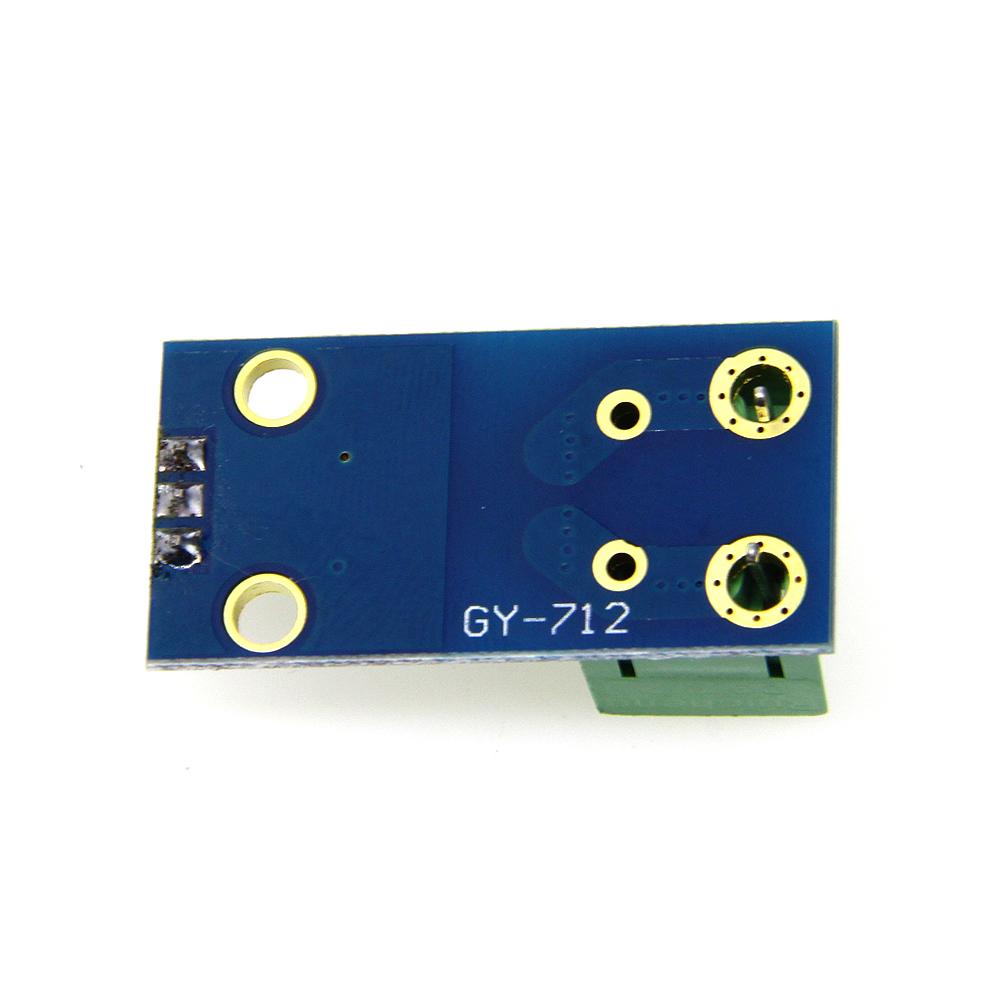

• PCB board size: 35(mm) x17(mm)/1.37''x0.66'' (approx)

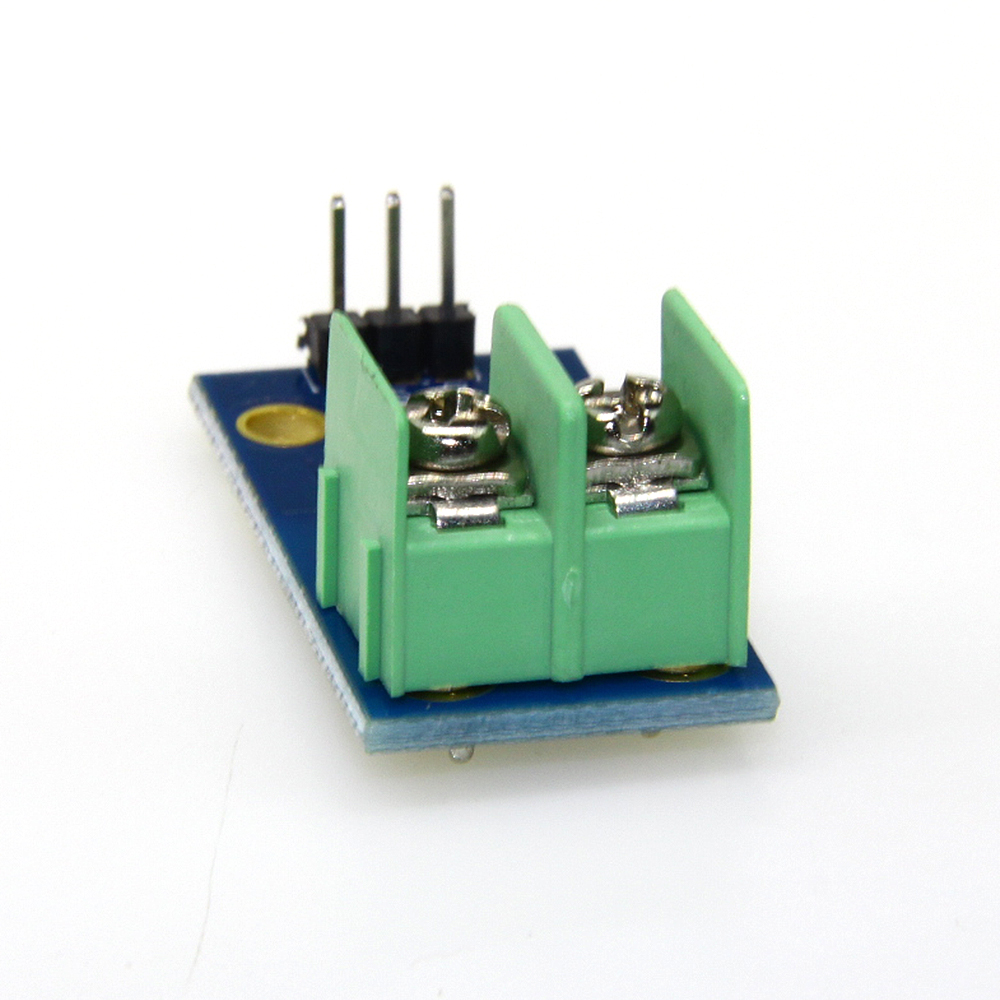

Lieferumfang

• 1x 30A Stromsensor ACS712ELCTR-30A
