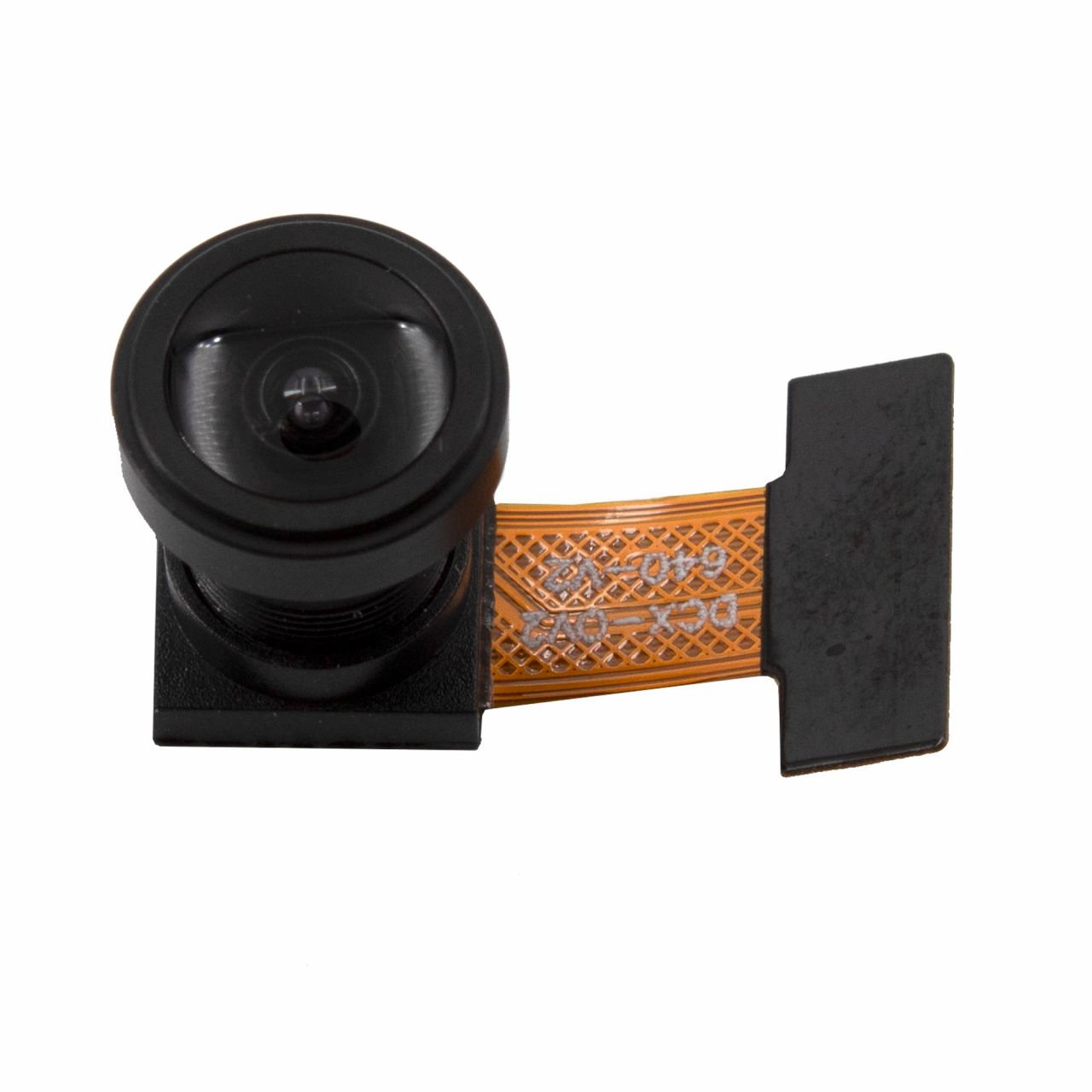

Kamera Modul OV2640 120° Weitwinkelobjektiv 2MP für ESP32 CAM
7,29 € inkl. MwSt. zzgl. 3,99 € Versandkosten Mengenrabatt anzeigen
Artikel derzeit nicht lieferbar
Dieses OV2640 Kameramodul eignet sich perfekt zum Anschluss an IoT Mikrocontrollern wie z. B. SIPEED, ESP-EYE, ESP-32CAM, STM32 (STM32F4 F7). Es besitzt ein 120° Weitwinkelobjektiv für ein besonders großes Sichtfeld und bietet alle Funktionen einer Ein-Chip-UXGA-Kamera und Bildprozessors.
Details
- High sensitivity suitable for low illumination applications
- Low voltage suitable for embedded applications
- Standard SCCB interface, compatible with I2C interface
- RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
- Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40x30
- Support VarioPixel sub-sampling method
- Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control includes color saturation, hue, gamma, sharpness ANTI_BLOOM
- ISP has the function of noise elimination and dead pixel compensation
- Support image zoom
- Lens loss compensation
- Saturation automatic adjustment
- Automatic adjustment of edge enhancement
- Automatic adjustment of noise reduction
- key parameter
- Photosensitive array 1632x1232 Maximum format UXGA
- IO voltage 1.7V-3.3V analog voltage 2.5-3.0v (internal LDO powers the core 1.2V)
- Power consumption working TBD sleep <20μA
- Temperature operation -30℃ to 70℃
- Stable working 0℃ to 50℃
- Output format (8 bits) YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
- Optical size 1/4"
- Field of view 120 degrees
- Maximum frame rate 15fps SXGA
- Sensitivity 1.3V/(Lux-sec)
- S/N ratio 40 dB
- Dynamic range 50 dB
- Browse mode line by line
- Electronic exposure 1 line to 1247 lines
- Pixel area 2.2μm x 2.2μm
- Dark current 15mV/s at 60℃
Lieferumfang
- 1x Kamera Modul OV2640 120° Weitwinkelobjektiv 2MP
