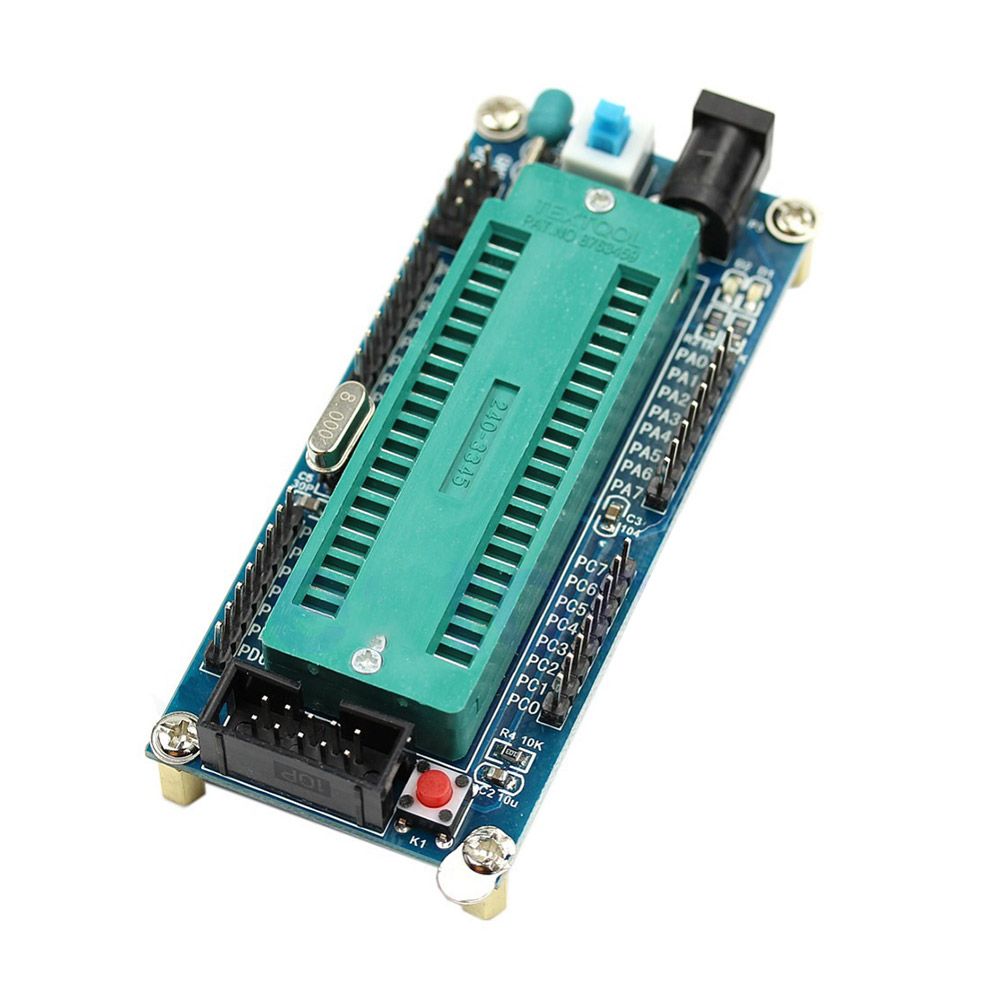

ISP AVR ATmega16/ATmega32 Minimum Mikrocontroller System Board ohne Chip
Kompaktes Developmentboard für ATmega16 und ATmega32 Chips.
Liste der unterstützten Chips:
Serie 51: AT89S51, AT89S52, AT89S53, AT89S8252
AVR-Serie: ATTiny12 (L), ATTiny13 (V), ATTiny15 (L), ATTiny24 (V), ATTiny25 (V), ATTiny26 (L), ATTiny2313 (V) , ATTiny44 (V), ATTiny45 (V), ATTiny84 (V), ATTiny85 (V), AT90S2313 (L), AT90S2323 (L), AT90S2343 (L), AT90S1200 (L), AT90S8515 (L), AT90S8535 (L), ATMEGA48 (V), ATMEGA8 (L), ATMEGA88 (V), ATMEGA8515 (L), ATMEGA8535 (L), ATMEGA16 (L), ATMEGA162 (V), ATMEGA163 (L), ATMEGA164 (V), ATMEGA165 (V), ATMEGA168 (V), ATMEGA169 (V), ATMEGA169P (V), ATMEGA32 (L), ATMEGA324 (V), ATMEGA325 (V), ATMEGA3250 (V), ATMEGA329 (V), ATMEGA3290 (V), ATMEGA64 (L), ATMEGA640 (V), ATMEGA644 (V), ATMEGA645 (V), ATMEGA6450 (V), ATMEGA649 (V), ATMEGA6490 (V), ATMEGA128 (L), ATMEGA1280 (V), ATMEGA1281 (V), ATMEGA2560 (V), ATMEGA2561 (V), AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2 (B) , AT90PWM3 (B) usw.
Details
- 32 I/O pin all the leads.
- Classic ATmega16 minimum system, eliminating the hassle of soldering
- Crystal: The socket hole welding facilitate the buyer to replace the crystal, 12MHZ crystal
- support chips: ATmega16/ATmega32 and chip which are pin-compatible
- Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply)
- DC-005 Power Block (supporting the transposon is 5.5*2.1mm)
- expand outside 4 channel VCC, GND
- Reset: Power-on reset and reset button
- Power LED (D1) and program run indicator (D2)
- standard ISP download interface
Lieferumfang
- 1x AVR Minimum Development Board für ATmega16, ATmega32 (Ohne Chip)
