FM Stereo Radio RDA5807M Funkmodul

(3 Bewertungen) Bewertungen anzeigen

1,29 € inkl. MwSt. zzgl. 3,99 € Versandkosten Mengenrabatt anzeigen

Sofort versandfertig

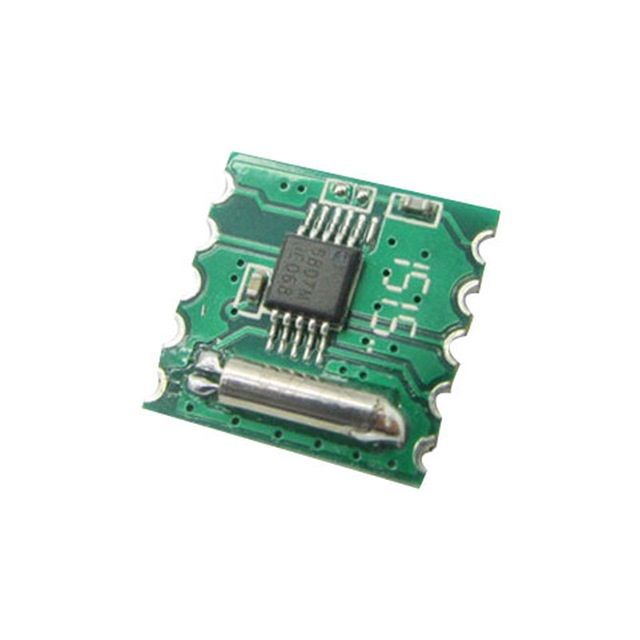

Das RRD-102V2.0 Modul ist empfindlich, energiesparend und super kompakt. Es basiert auf dem RDA Microelectronics RDA5807M (RDA5802NM) und benutzt im Schaltkreis nur wenige Komponenten.

Details

  •  using a common 102BC module package , users can directly replace the use , without changing the circuit design.
  •  high sensitivity, low noise, anti-interference ability , very few external components , small size (11 * 11.2MM Max), extremely simple to use .
  •  76-108MHz FM band worldwide compatible ( 76-91MHz , including Japan , America and Europe 87.5-108.5MHz).
  •  I2C serial data communications bus interface , support for external reference clock input.
  • COMS technology fully integrated single-chip integrated circuits , power consumption is minimal.
  • built-in high-precision A / D ( analog ) and digital frequency synthesizer.
  • built-in LDO regulator , low power, wide voltage range (2.7-3.6VDC).
  • built-in noise reduction, soft mute, bass boost circuit design.
  • 32Ω load high power audio output, headphone connections are direct , no external audio driver amplifier .
  • the application is simple , low cost , cost-effective

Lieferumfang

  • 1x FM Stereo Radio RDA5807M Funkmodul
